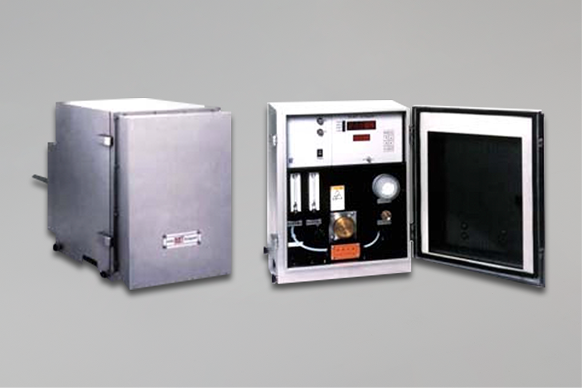

Light Scattering Type Dust Concentration Meter ISS-101
Features
- Supports 0–10 mg/Nm3 range
- Equipped with automatic purge and automatic zero calibration functions
Usage
Continuous monitoring of dust concentration
- Typical applications and installation points
-
- Boiler stack inlets
- Bag filter and electrostatic precipitator (EP) outlets of waste incinerators
- Stack inlets of waste and sludge incinerators
- Outlets of various combustion furnaces
Specifications
| Model | ISS-101 |
|---|---|
| Measuring Principle | Light scattering type method |
| Sampling Method | Direct stack connection |
| Measuring Range | 0–10 / 0–25 / 0–100 mg/Nm³ |
| Output Signal | DC 4–20 mA, isolated output, load resistance ≤600 Ω |
| Repeatability | ±2 % FS |
| Contact Input |
Voltage-free contacts Number of contacts: 3 inputs L range switching / M range switching / H range switching / Bypass operation |
| Contact Output |
Voltage-free relay contacts (AC 250 V, 5 A / DC 30 V, 5 A, resistive load) Number of contacts: 6 outputs Selectable functions: L range active / M range active / H range active / Bypass operation or Automatic zero calibration in progress / Purge in progress / Analyzer fault |
| Other Functions | First-order lag calculation / Moving average / Automatic zero calibration / Automatic purge / Mass concentration conversion / O2 concentration conversion / Output hold / Self-diagnostics |
| Power Supply | AC 100 V ±10%, 50/60 Hz, 700 VA |
| Transmitter Interface | JIS 10K 100A equivalent (Contact us for other sizes) |
